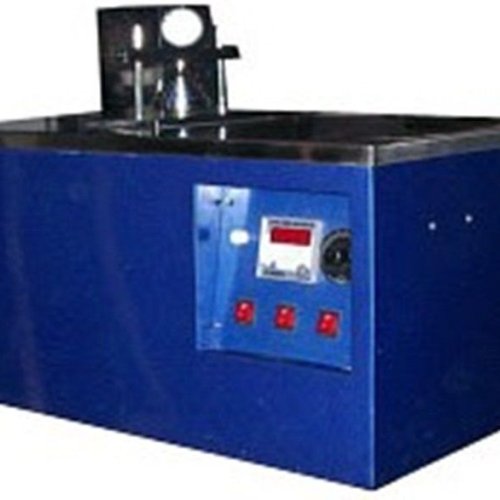

HDT Tester

HDT Tester

MOQ : 1 Piece

Business Type Manufacturer, Supplier, Retailer, Wholesaler
Distance between supports 100 mm
Temperature controller 0 – 150º C X 1º C
Measurement of deflection Dial micrometer of range 0 – 10 X 0.01 mm
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Loadings
By dead weight to give loads from 100 gm to 1600 gm in Step of 10 gm.
Related Standard
Astm D – 1525 and Astm D – 648

The Apparatus for Temperature of Deflection under Load consists of a specimen support, an immersion bath, a set of weights under deflection –measuring device.The specimen support consists of a two parallel metal supports having rounded edges fixed at a specified distance on an aluminium frame. Load is applied on the test specimen midway between two supports. This block is fitted to the lower end of the vertical rod, which is guided inside a metallic sleeve and is constrained to move without rotating along a vertical axis. The upper end of the vertical rod carries a load carrying plate on which loading weight can be placed to load the test specimen. All the parts are made of aluminium having same co-efficient of linear expansion.

The immersion bath consists of a double walled reservoir having the  inner walls made from Stainless Steel sheet and outer walls made of mils steel sheet. The space in between the walls is filled with glass wool insulation. The liquid in the bath is heated by means of an immersion heater and the rate of rise of temperature controlled with the help of an electronic voltage regulator. A digital temperature controller is provided to restrict the maximum temperature of the bath.

The deflection of the specimen is measured with the help of dial gauge.
