Plastic & Polymer Testing Equipment

Plastic & Polymer Testing Equipment




Business Type Manufacturer, Supplier, Retailer, Wholesaler
Maximum Load Capacity 500 Kg
Least Count 0.1 Kg
Usage/Application for Bottle Compression Testing
Packaging Type Wooden
Brand TBG
Material MS Powder Coated
Type Of Testing Machines Digital
Display Type Digital
Grade Automatic

Click to view more

Preferred Buyer From

Location Anywhere in India

Yes! I am interested


Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Payment Terms T/T

Preferred Buyer From

Location Anywhere in India

Yes! I am interested


Business Type Exporter, Supplier, Retailer, Wholesaler
Color Sky Blue
Condition New
Automatic Grade Automatic, Fully Automatic
Power Source Battery, Electric
Application Fabric Flammability Uses, Industrial Use, Power Grade Use
Feature Easy To Use, Four Times Stronger, Proper Working, Superior Finish
Temperature Capacity High Temperature, Low Temperature
Type Flammability Testers
Country of Origin India

Click to view more

Preferred Buyer From

Location Anywhere in India

Yes! I am interested


Price : INR 1.00 / piece

MOQ : 1 Piece

Business Type Supplier, Retailer, Wholesaler
Power 230 Volts, 50Hz, single phase
Capacity Up to 25 J.
Release angle of pendulum 135 degree.
Resolution 0.1 J
Paint Powder coated
Related Standard Astm D – 256

Preferred Buyer From

Location Anywhere in India

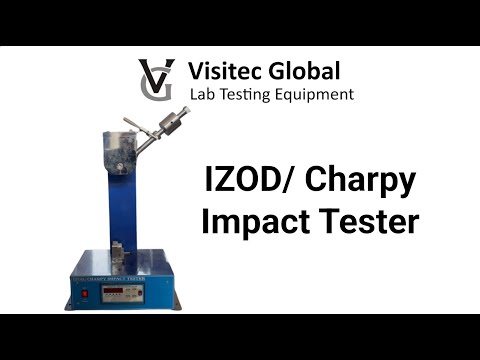

As per ASTM D - 256 to test impact resistance of plastics. The test indicates the energy required to break standard test specimen.

Read More...


Yes! I am interested


Price : INR 1.00 / piece

MOQ : 1 Piece

Business Type Manufacturer, Supplier, Retailer, Wholesaler
Feature Easy To Use, Electrical Porcelain, Four Times Stronger
Temperature Range Ambient to 299.9° C.
Diameter of heater tube cavity 9.55 mm.
Dimensions of piston head 9.47 mm Diameter X 6.35 mm Long
Dimensions of jets holes 2.095 mm X 8.00 mm Long
Weights 325 gm, 1050 gm, 2160 gm & 5000 gm.
Digital Timer 999 hrs.

Preferred Buyer From

Location Anywhere in India

Melt Flow of thermoplastic material is defined as the rate of flow in grams per ten minutes of extrude of molten resins through a jet of a specified length and diameter under prescribed conditions of temperature, load & piston position in a cylindrical cavity inside a heated metallic tube barrel at the measurement is being made.



Melt Flow Index Apparatus for Plastic consists of a heated extruder tube, an interchangeable jet through which the material under test is extruded, and a piston with dead weights to apply the specified pressure on the material inside the extruder tube. The extruder tube is made from carbon steel and is heated by means of a Bend Heater, which surrounds its outer circumference. A PID controller is provided to indicate & control the temperature of the tube. The tube has a whole parallel to its bore for placing the thermocouple junction. The heater logged with mineral wool insulation. The assembly is fixed on a rigid stand. The bottom of the tube is lagged with a 3 mm thick insulation of PTFE to prevent sticking of the extrude. The jet through with the extruder is pushed out is made from hardened and ground die steel. It is held at the bottom of the extruder tube. The piston made from silver steel relieved at the upper end is provided to push the extrude out of the jet. The piston moves inside the cavity of tube. A sleeve to provide to guide the relieved portion of the piston. The top of the piston carries a plate-form for keeping the load on. The plate-form is thermally insulated from the load. The extruder tube assembly is mounted on a metal box. A sheet metal control panel is mounted on the side of the equipment & houses the PID Controller, DIGITAL PRESET TIMER at other electronic components. Cleaning tools for tube cavity and jets & stoppers & cutter for the extradite are also supplied with the equipments.



RELATED STANDARD:

ASTM-D- 1238 – 1982 : Standard test method for flow rate of Thermoplastic by Extrusion Plastometer.

Read More...


Yes! I am interested


Business Type Manufacturer, Supplier, Retailer, Wholesaler
Color Sky Blue
Automatic Grade Automatic
Condition New
Power Source Battery, Electric
Feature Easy To Use, Electrical Porcelain, Four Times Stronger, Superior Finish
Type Melt Flow Index Tester
Operating Current Double Phase
Country of Origin India

Click to view more

Preferred Buyer From

Location Anywhere in India

Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Trader
Payment Terms T/T

Preferred Buyer From

Location Anywhere in India

Digital auto melting point apparatus (microprocessor based) is an unique instruments measuring Melting Point of the Substance.

Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Trader
Payment Terms T/T

Preferred Buyer From

Location Anywhere in India

Water Vapour Permeability Tester made of twelve brass bottles.

Read More...


Yes! I am interested
