PET Preform Testing Equipment

APPLICATION:

Eccentricity Tester is useful to check the thickness of preforms or bottles. It is provided with digital gauge for more accurate measurements. With equipment of revolving type with zero tolerance eccentricity, making it must for laboratory based applications. These are used for verifying parameters of banana performs where it’s revolving mechanism allows for accurate checking of eccentricity and thickness of preform.

FEATURES:

• Suitable for checking perform eccentricity and thickness in laboratory setup
• Equipment is of revolving type and comes with zero tolerance for eccentricity
• Revolving mechanism also allows accurate checking of eccentricity and thickness
• Features LCD display support

The Preform Perpendicularity Gauge is designed to verify that the body of a preform is precisely perpendicular to its finish surface. Equipped with a rigid stand, the system securely holds preforms in position, enabling accurate measurement and quick identification of bent or out-of-round components. The instrument is supplied with a high-accuracy digital readout, featuring an integrated port for serial communication.

The Preform Perpendicularity Tester provides a reliable and consistent solution for manufacturers to evaluate the perpendicularity of PET preforms. Operating on precise measurement principles, it ensures accurate assessment of preform shape and dimensional integrity. The system is user-friendly, dependable, and suitable for routine quality control applications.

Features

• Optimum functionality
• Easy and accurate digital readout
• Zero tolerance capability
• Adjustable measurement settings
• High repeatability in test results
• Long service life

Our PET preform bottle neck gauges are specially designed for quality inspection applications in industries such as cosmetics packaging, jam packaging, and liquor packaging. These gauges help manufacturers maintain dimensional accuracy and ensure consistent product quality during production.

We offer gauges for a wide range of PET preform neck sizes, including 1810, 1881, 29/25, 30/25, and Alaska standards. Each gauge is manufactured with precision to provide reliable and accurate measurement results for different preform applications.

The gauges are capable of checking critical dimensions such as neck inside diameter, thread outside diameter, tamper ring diameter, and tamper ring height. With high accuracy and durability, these gauges help improve inspection efficiency and maintain industry quality standards.

This Moisture analyzer is used  to check the moisture in preforms, plastic, granules, etc.

The Polariscope is designed to analyze internal material stresses and flow characteristics in PET preforms and containers, making it suitable for both laboratory applications and at-line inspection. It enables easy detection of defects by displaying characteristic color patterns—isochromatic fringes when the preform is held parallel to the viewing field, indicating stress magnitude; and isoclinic patterns at a 45° angle, indicating stress direction. Widely used in preform assembly, the ‘Visitec Global’ Polariscope helps identify defects at an early stage, supporting cost reduction and improved production efficiency, and is complemented by a defect chart for better analysis. The device features dual viewing slots for 90° and 45° light orientations, is available in various sizes and weights depending on the model, and operates on a standard 220/240V power supply.

PREFORM CUTTER

Cutting  Area 0 -42mm dia

Method of Cutting

1) Put off Metal stopper, open handle with two hands.

2) Put preform in the cutting blade area and start pressing slowly.

3) Repeat the operation till the preform is cut.

Warning

1) This product is made of metal. Please do not use in Induction area because it will have electrical conduction.

2) The front pa rt of blade is very sharp, anyway, please do not hold that part.

3) Please do not act any operation in the working area, especially to note the children, pets, moreover, you should put on the helmet anti-dust glasses, glove etc. for protecting yourself. Please do not stand on the roof and unstable place where you are using this product.

4) Please Do not let your hand close to the brake because it will clam your hand.

5) Please close the blade part after using in order to prevent metal stopper from choke when opening. Besides, Please keep out of reach of children.

Note:

1) Please do not neglect the above mentioned purpose and specification when using.

2) Before using, Please check the screws are loosened or not the parts are damaged or not. To use Ratter assuring everything is correct

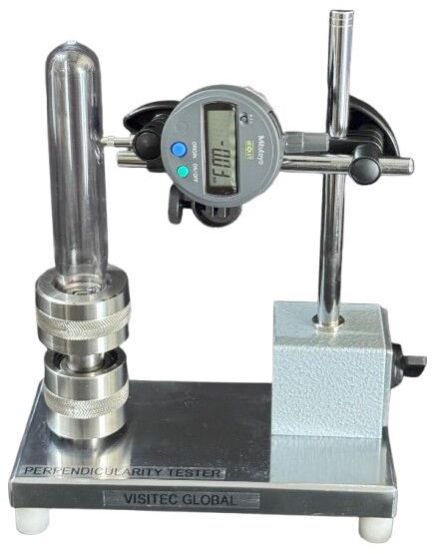

The Visitec Global Preform Perpendicular Tester with magnetic stand is engineered for precise and reliable measurement of preform alignment and perpendicularity. Its robust magnetic stand ensures stable positioning, enhancing accuracy and ease of use in laboratory and production environments.

Manufactured by Visitec Global, one of the largest producers of laboratory testing equipment, this instrument reflects a strong commitment to quality, innovation, and performance.

Description :-Transparency Tester is also called Light Transmittance Meter. This is used to check transparency rate in PET PREFORM. This is special designed for PET Preform.
