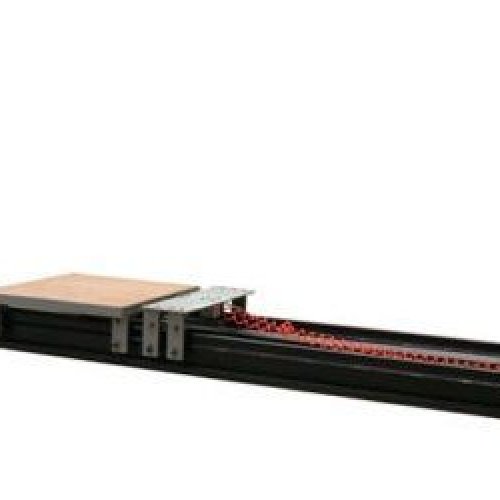

Inclined Impact Tester

Inclined Impact Tester

MOQ : 1 Piece

Business Type Manufacturer, Supplier, Retailer, Wholesaler
Testing Box Size :60 × 60inch
Max. Payload 1000kg
Angle of Inclination (Adjustable) 0 to 10º
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Slab Wall (LxW)
3 × 3.1 Mtr.
Slab Wall Make
MS Make
Controller System
Digital Controller
Motor (To revert back the trolley)
1 H.P.
Lifting Through
Pneumatic Air Cylinder (to set angle)

‘TBG’ Inclined Impact Tester performs inclined impact tests which simulate distribution handling hazards. Our design meets traditional industry specifications with the added benefits of some innovative design ideas. The unique articulating carriage pivots to load the test item. With the top surface level, it’s safer and easier to place the test load on the carriage with a forklift. The carriage lowers into its testing position and then you can begin performing impacts.

TBG Inclined Impact Tester carriage dimensions are Length 4.6 Meter × Width 3.1 Meter. The impact surface (backstop) is Length 3 Meter × Width 3.1 Meter. Impact Tester can test payloads weighing up to 1000 kg. The standard system can generate a maximum impact velocity of 3.9 m/sec.

The Digital controller allows an operator to position the carriage while remaining safely away from the machine. Built-in safety interlocks protect the operator from potentially dangerous conditions.



SPECIAL FEATURES

  • Articulating carriage system for convenient loading
  • Digital controller for safe operation
  • Movement: by rollers due to gravity
  • Pneumatic lifting and operated by digital controller.



RELATED STANDARD

IS 7028 (part 3)
